# Thursday, 08 April 2010

Earlier, in the entry "Inline functions in xslt 2.1" we've described an implementation of xml tree model that may share subtrees among different trees.

This way, in a code:

<xsl:variable name="elements" as="element()*" select="..."/>

<xsl:variable name="result" as="element()">
  <result>
    <xsl:sequence select="$elements"/>
  </result>
</xsl:variable>

the implementation shares internal representation among $elements and subtree of $result. From the perspective of xslt it looks as completely different subtrees with different node identities, which is in the accordance with its view of the world.

After a short study we've decided to create a research implementation of this tree model in saxon. It's took only a couple of days to introduce a minimal changes to engine, to refactor linked tree into a new composable tree, and to perform some tests.

In many cases saxon has benefited immediately from this new tree model, in some other cases more tunings are required.

Our tests've showed that this new tree performed better than linked tree, but a little bit worser than tiny tree. On the other hand, it's obvious that conventional code patterns avoid subtree copying, assuming it's expensive operation, thus one should rethink some code practices to benefit from composable tree.

Implementation can be downloaded at: saxon.composabletree.zip

Thursday, 08 April 2010 06:26:02 UTC  #    Comments [0] -
Announce | Thinking aloud | xslt
# Sunday, 04 April 2010

From the web we know that xslt WG is thinking now on how to make xslt more friendly to a huge documents. They will probably introduce some xslt syntax to allow implementation to be ready for a such processing.

They will probably introduce an indicator marking a specific mode for streaming. XPath in this mode will probably be restricted to a some its subset.

The funny part is that we have implemented similar feature back in 2002 in .net. It was called XPathForwardOnlyNavigator.

Implementation stored only several nodes at a time (context node and its ancestors), and read data from XmlReader perforce. Thus one could navigate to ancestor elements, to children, and to the following siblings, but never to any previous node. When one tried to reach a node that was already not available we threw an exception.

It was simple, not perfect (too restrictive) but it was pluggable in .net's xslt, and allowed to process files of any size.

That old implementation looks very attractive even now in 2010. We expect that WG with their decisions will not rule out such or similar solutions, and will not force implementers to write alternative engine for xslt streaming.

Sunday, 04 April 2010 20:53:27 UTC  #    Comments [0] -
Thinking aloud | xslt
# Friday, 02 April 2010

Xslt 1.0 has been designed based on the best intentions. Xslt 2.0 got a legacy baggage.

If you're not entirely concentrated during translation of your algorithms into xslt 2.0 you can get into trap, as we did.

Consider a code snapshot:

<xsl:variable name="elements" as="element()+">
  <xsl:apply-templates/>
</xsl:variable>

<xsl:variable name="converted-elements" as="element()+"
  select="$elements/t:convert(.)"/>

Looks simple, isn't it?

Our intention was to get converted elements, which result from some xsl:apply-templates logic.

Well, this code works... but rather sporadically, as results are often in wrong order! This bug is very close to what is called a Heisenbug.

So, where is the problem?

Elementary, my dear Watson:

  1. xsl:apply-templates constructs a sequence of rootless elements.
  2. $elements/t:convert(.) converts elements and orders them in document order.

Here is a tricky part:

The relative order of nodes in distinct trees is stable but implementation-dependent...

Clearly each rootless element belongs to a unique tree.

After that we have realized what the problem is, code has been immediately rewritten as:

<xsl:variable name="elements" as="element()+">
  <xsl:apply-templates/>
</xsl:variable>

<xsl:variable name="converted-elements" as="element()+" select="
  for $element in $elements return
    t:convert($element)"/>

P.S. Taking into an accout a size of our xslt code base, it took a half an hour to localize the problem. Now, we're at position to review all uses of slashes in xslt. As you like it?

Friday, 02 April 2010 17:53:18 UTC  #    Comments [0] -
Thinking aloud | xslt
# Saturday, 27 March 2010

Opinions on xml namespaces

olegtk: @srivatsn Originally the idea was that namespace URI would point to some schema definition. Long abandoned idea.

Not so long ago, I've seen a good reasoning about the same subject:

Saturday, 27 March 2010 09:49:45 UTC  #    Comments [0] -
xslt
# Monday, 22 March 2010

Inline functions in xslt 2.1 look often as a some strange aberration. Sure, there are very usefull cases when they are delegates of program logic (e.g. comparators, and filters), but often (probably more often) we can see that it's use is to model data structures.

As an example, suppose you want to model a structure with three properties say a, b, and c. You implement this creating functions that wrap and unwrap the data:

function make-data($a as item(), $b as item(), $c as item()) as function() as item()+
{
  function() { $a, $b, $c }
}

function a($data as function() as item()+) as item()
{
  $data()[1]
}

function b($data as function() as item()+) as item()
{
  $data()[2]
}

function c($data as function() as item()+) as item()
{
  $data()[3]
}

Clever?

Sure, it is! Here, we have modeled structrue with the help of sequence, which we have wrapped into a function item.

Alas, clever is not always good (often it's a sign of a bad). We just wanted to define a simple structure. What it has in common with function?

There is a distance between what we want to express, designing an algorithm, and what we see looking at the code. The greater the distance, the more efforts are required to write, and to read the code.

It would be so good to have simpler way to express such concept as a structure. Let's dream a little. Suppose you already have a structure, and just want to access its members. An idea we can think about is an xpath like access method:

$data/a, $data/b, $data/c

But wait a second, doesn't $data looks very like an xml element, and its accessors are just node tests? That's correct, so data constructor may coincide with element constructor.

Then what pros and cons of using of xml elements to model structures?

Pros are: existing xml type system, and sensibly looking code (you just understand that here we're constructing a structure).

Cons are: xml trees are implemented the way that does not assume fast (from the perfromace perspective) composition, as when you construct a structure a copy of data is made.

But here we observe that "implemented" is very important word in this context. If xml tree implementation would not store reference to the parent node then subtrees could be composed very efficiently (note that tree is assumed to be immutable). Parent node could be available through a tree navigator, which would contain reference to a node itself and to a parent tree navigator (or to store child parent map somewhere near the root).

Such tree structure would probably help not only in this particular case but also with other conventional xslt code patterns.

P.S. Saxon probably could implement its NodeInfo this way.

Update: see also Custom tree model.

Monday, 22 March 2010 11:02:07 UTC  #    Comments [0] -
Thinking aloud | xslt
# Monday, 15 March 2010

A while ago we have proposed to introduce maps as built-in types in xpath/xquery type system: Tuples and maps.

The suggestion has been declined (probably our arguments were not convincing). We, however, still think that maps along with sequences are primitives, required to build sensible (not obscure one) algorithms. To see that map is at times is the best way to resolve the problems we shall refer to an utility function to allocate names in scope. Its signature looks like this:

<!--
Allocates unique names in the form $prefix{number}?.
Note that prefixes may coincide.
$prefixes - a name prefixes.
$names - allocated names pool.
$name-max-length - a longest allowable name length.
Returns unique names.
-->
<xsl:function name="t:allocate-names" as="xs:string*">
  <xsl:param name="prefixes" as="xs:string*"/>
  <xsl:param name="names" as="xs:string*"/>
  <xsl:param name="name-max-length" as="xs:integer?"/>

Just try to program it and you will find yourselves coding something like one defined at cobolxom.

To be efficient such maps should provide, at worst, a logarithmic operation complexity:

  • Access to the map through a key (and/or by index) - complexity is LnN;
  • Creation of a new map with added or removed item - complexity is LnN;
  • Construction of the map from ordered items - complexity is O(N);
  • Construction of the map from unordered items - complexity is O(N*LnN);
  • Total enumeration of all items - complexity is O(N*LnN);

These performance metrics are found in many functional and procedural implementations of the maps. Typical RB and AVL tree based maps satisfy these restrictions.

What we suggest is to introduce map implementation into the exslt2 (assuming inline functions are present). As a sketch we have implemented pure AVL Tree in Xslt 2.0:

We do not assume that implementation like this should be used, but rather think of some extension function(s) that provides a better performance.

What do you think?

Monday, 15 March 2010 13:59:19 UTC  #    Comments [1] -
Thinking aloud | xslt
# Sunday, 28 February 2010

The story about immutable tree would not be complete without xslt implementation. To make it possible one needs something to approxomate tree nodes. You cannot implement such consruct efficiently in pure xslt 2.0 (it would be either unefficient or not pure).

To isolate the problem we have used tuple interface:

  • tuple:ref($items as item()*) as item() - to wrap items into a tuple;
  • tuple:deref($tuple as item()?) as item()* - to unwrap items from a tuple;
  • tuple:is-same($first as item(), $second as item()) as xs:boolean - to test whether two tuples are the same.

and defined inefficient implementation based on xml elements. Every other part of code is a regular AVL algorithm implementation.

We want to stress again that even assuming that there is a good tuple implementation we would prefer built-in associative container implementation. Why the heck you need to include about 1000 lines of code just to use a map?

Source code is:

Sunday, 28 February 2010 19:28:07 UTC  #    Comments [0] -
Thinking aloud | xslt

We like Visual Studio very much, and try to adopt new version earlier.

For the last time our VS's use pattern is centered around xml and xslt. In our opinion VS 2008 is the best xslt 2 editor we have ever seen even with lack of support of xslt 2.0 debugging.

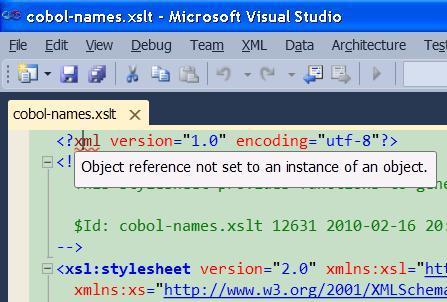

Unfortunatelly, that is still a true when VS 2010 is almost out. VS 2008 is just 2 - 3 times faster. You can observe this working with xslt files like those in languages-xom.zip (1000 - 2000 rows). Things just become slow.

We still hope that VS 2010 will make a final effort to outdo what VS 2008 has already delivered.

Sunday, 28 February 2010 18:37:58 UTC  #    Comments [0] -
Thinking aloud | xslt
# Thursday, 25 February 2010

While bemoaning about lack of associative containers in xpath type system, we have came up with a good implementation of t:allocate-names(). Implementation can be seen at location cobol-names.xslt.

It is based on recursion and on the use of xsl:for-each-group. Alogrithmic worst case complexity is O(N*LogN*LogL), where N is number of names, and L is a length of a longest name.

This does not invalidate the idea that associative containers are very wishful, as blessed one who naturally types such implementation. For us, it went the hard way, and has taken three days to realize that original algorithm is problematic, and to work out the better one.

In practice this means 2 seconds for the new implementation against 25 minutes for the old one.

Thursday, 25 February 2010 07:19:06 UTC  #    Comments [0] -
xslt
# Wednesday, 24 February 2010

Ladies and gentlemen of the jury...

Xml Editor in VS 2010

Wednesday, 24 February 2010 21:00:36 UTC  #    Comments [7] -

Why do we return to this theme again?

Well, it's itching!

In cobolxom there is an utility function to allocate names in scope. Its signature looks like this:

<!--
  Allocates unique names in the form $prefix{number}?.
  Note that prefixes may coincide.
    $prefixes - a name prefixes.
    $names - allocated names pool.
    $name-max-length - a longest allowable name length.
    Returns unique names.
-->
<xsl:function name="t:allocate-names" as="xs:string*">
  <xsl:param name="prefixes" as="xs:string*"/>
  <xsl:param name="names" as="xs:string*"/>
  <xsl:param name="name-max-length" as="xs:integer?"/>

We have created several different implementations (all use recursion). Every implementation works fair for relatively small input sequences, say N < 100, but we have cases when there are about 10000 items on input. Algorithm's worst case complexity, in absence of associative containers, is O(N*N), and be sure it's an O-o-o-oh... due to xslt engine implementation.

If there were associative containers with efficient access (complexity is O(LogN)), and construction of updated container (complexity is also O(LogN)) then implementation would be straightforward and had complexity O(N*LogN).

Wednesday, 24 February 2010 07:34:07 UTC  #    Comments [0] -
Thinking aloud | xslt
# Wednesday, 17 February 2010

The very same simple tasks tend to appear in different languages (e.g. C# Haiku). Now we have to find:

  • integer and fractional part of a decimal;
  • length and precision of a decimal.

These tasks have no trivial solutions in xslt 2.0.

At present we have came up with the following answers:

Fractional part:

<xsl:function name="t:fraction" as="xs:decimal">
  <xsl:param name="value" as="xs:decimal"/>

  <xsl:sequence select="$value mod 1"/>
</xsl:function>

Integer part v1:

<xsl:function name="t:integer" as="xs:decimal">
  <xsl:param name="value" as="xs:decimal"/>

  <xsl:sequence select="$value - t:fraction($value)"/>
</xsl:function>

Integer part v2:

<xsl:function name="t:integer" as="xs:decimal">
  <xsl:param name="value" as="xs:decimal"/>

  <xsl:sequence select="
    if ($value ge 0) then
      floor($value)
    else
      -floor(-$value)"/>
</xsl:function>

Length and precision:

<!--
  Gets a decimal specification as a closure:
    ($length as xs:integer, $precision as xs:integer).
-->
<xsl:function name="t:decimal-spec" as="xs:integer+">
  <xsl:param name="value" as="xs:decimal"/>

  <xsl:variable name="text" as="xs:string" select="
    if ($value lt 0) then
      xs:string(-$value)
    else
      xs:string($value)"/>

  <xsl:variable name="length" as="xs:integer"
    select="string-length($text)"/>
  <xsl:variable name="integer-length" as="xs:integer"
    select="string-length(substring-before($text, '.'))"/>

  <xsl:sequence select="
    if ($integer-length) then
      ($length - 1, $length - $integer-length - 1)
    else
      ($length, 0)"/>
</xsl:function>

The last function looks odious. In many other languages its implementation would be considered as embarrassing.

Wednesday, 17 February 2010 07:29:55 UTC  #    Comments [0] -
Tips and tricks | xslt
# Sunday, 07 February 2010

Given:

public class N
{
  public readonly N next;
}

What needs to be done to construct a ring of N: n1 refers to n2, n2 to n3, ... nk to n1? Is it possible?

Sunday, 07 February 2010 07:57:08 UTC  #    Comments [2] -
Thinking aloud | Tips and tricks
# Saturday, 06 February 2010

To end with immutable trees, at least for now, we've implemented IDictionary<K, V>. It's named Map<K, V>. Functionally it looks very like SortedDictionary<K, V>. there are some differences, however:

  • Map in contrast to SortedDictionary is very cheap on copy.
  • Bacause Map is based on AVL tree, which is more rigorly balanced than RB tree, so it's a little bit faster asymptotically for lookup than SortedDictionary, and a little bit slower on modification.
  • Due to the storage structure: node + navigator, Map consumes less memory than SortedDictionary, and is probably cheaper for GC (simple garbage graphs).
  • As AVL tree stores left and right subtree sizes, in contrast to a "color" in RB tree, we able to index data in two ways: with integer index, and with key value.

Sources are:

Update:

It was impossible to withstand temptation to commit some primitive performance comparision. Map outperforms SortedDictionary both in population and in access. this does not aggree with pure algorithm's theory, but there might be other unaccounted factors: memory consumption, quality of implementation, and so on.

Program.cs is updated with measurements.

Update 2:

More occurate tests show that for some key types Map's faster, for others SortedDictionary's faster. Usually Map's slower during population (mutable AVL tree navigator may fix this). the odd thing is that Map<string, int> is faster than SortedDictionary<string, int> both for allocaction and for access. See excel report.

Update 3:

Interesing observation. The following table shows maximal and average tree heights for different node sizes in AVL and RB trees after a random population:

AVL RB
Size Max Avg Max Avg
10 4 2.90 5 3.00
50 7 4.94 8 4.94
100 8 5.84 9 5.86
500 11 8.14 14 8.39
1000 12 9.14 16 9.38
5000 15 11.51 18 11.47
10000 16 12.53 20 12.47
50000 19 14.89 23 14.72
100000 20 15.90 25 15.72
500000 25 18.26 28 18.27
1000000 25 19.28 30 19.27

Here, according with theory, the height of AVL tree is shorter than the height of RB tree. But what is most interesting is that the depth of an "average node". This value describes a number of steps required to find a random key. RB tree is very close and often is better than AVL in this regard.

Saturday, 06 February 2010 18:31:13 UTC  #    Comments [0] -
Thinking aloud | Tips and tricks
# Wednesday, 03 February 2010

It was obvious as hell from day one of generics that there will appear obscure long names when you will start to parametrize your types. It was the easiest thing in the world to take care of this in advanvce. Alas, C# inherits C++'s bad practices.

Read Associative containers in a functional languages and Program.cs to see what we're talking about.

Briefly, there is a pair (string, int), which in C# should be declared as:

System.Collections.Generic.KeyValuePair<string, int>

Obviously we would like to write it in a short way. These are our attempts, which fail:

1. Introduce generic alias Pair<K, V>:

using System.Collections.Generic;
using Pair<K, V> = KeyValuePair<K, V>;

2. Introduce type alias for a generic type with specific types.

using System.Collections.Generic;
using Pair = KeyValuePair<string, int>;

And this is only one that works:

using Pair = System.Collections.Generic.KeyValuePair<string, int>;

Do you think is it bearable? Well, consider the following:

  • There is a generic type ValueNode<T>, where T should be Pair.
  • There is a generic type TreeNavigator<N>, where N is should be ValueNode<Pair>.

The declaration looks like this:

using Pair = System.Collections.Generic.KeyValuePair<string, int>;
using Node = NesterovskyBros.Collections.AVL.ValueNode<
  System.Collections.Generic.KeyValuePair<string, int>>;
using Navigator = NesterovskyBros.Collections.AVL.TreeNavigator<
  NesterovskyBros.Collections.AVL.ValueNode<
    System.Collections.Generic.KeyValuePair<string, int>>>;

Do you still think is it acceptable?

P.S. Legacy thinking led C#'s and java's designers to the use of word "new" for the object construction. It is not required at all. Consider new Pair("A", 1) vs Pair("A", 1). C++ prefers second form. C# and java always use the first one.

Wednesday, 03 February 2010 11:59:19 UTC  #    Comments [1] -
Thinking aloud | Tips and tricks
Archive
<2010 April>
SunMonTueWedThuFriSat
28293031123
45678910
11121314151617
18192021222324
2526272829301
2345678
Statistics
Total Posts: 364
This Year: 9
This Month: 0
This Week: 0
Comments: 223
Locations of visitors to this page
Disclaimer
The opinions expressed herein are our own personal opinions and do not represent our employer's view in anyway.

© 2018, Nesterovsky bros
All Content © 2018, Nesterovsky bros
DasBlog theme 'Business' created by Christoph De Baene (delarou)
